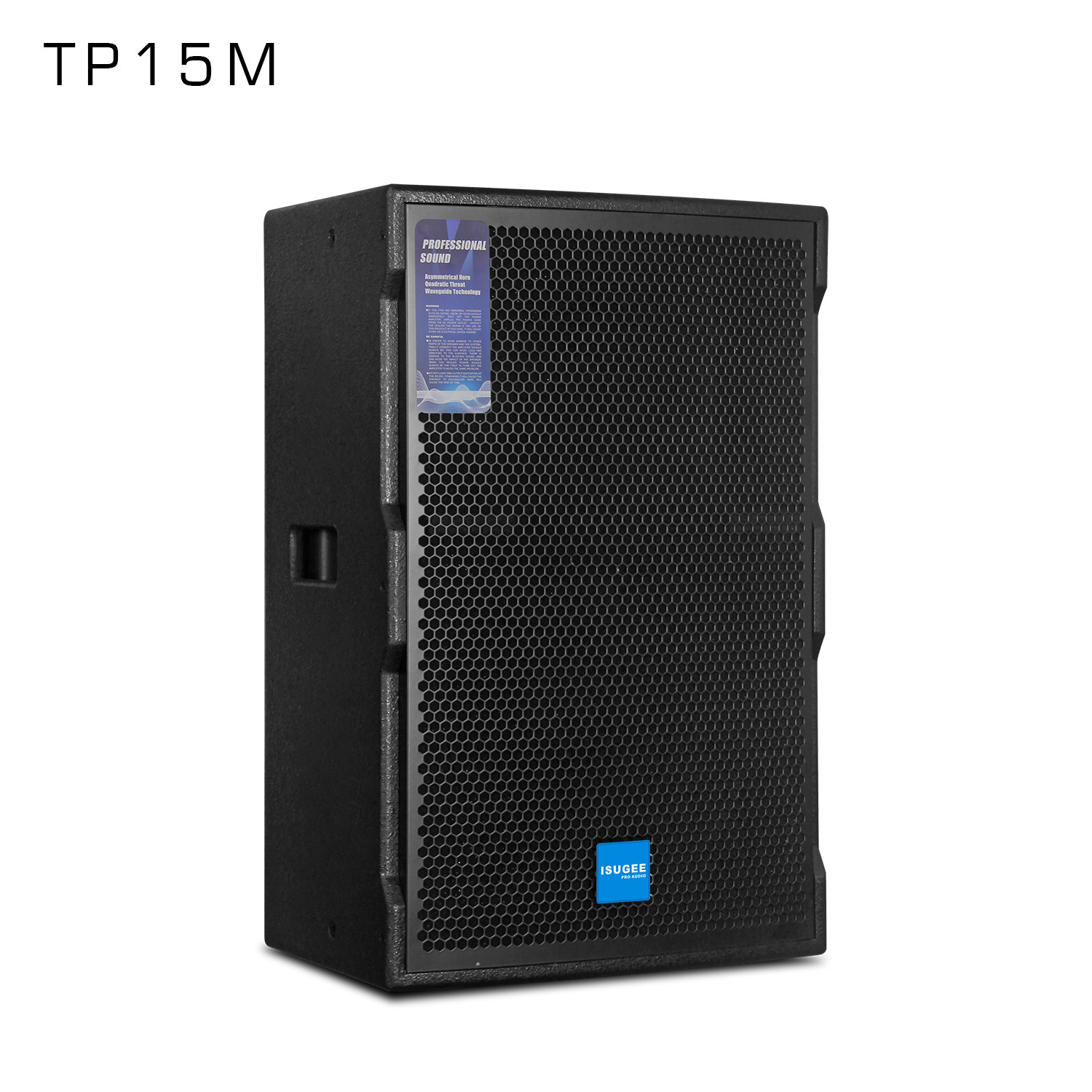

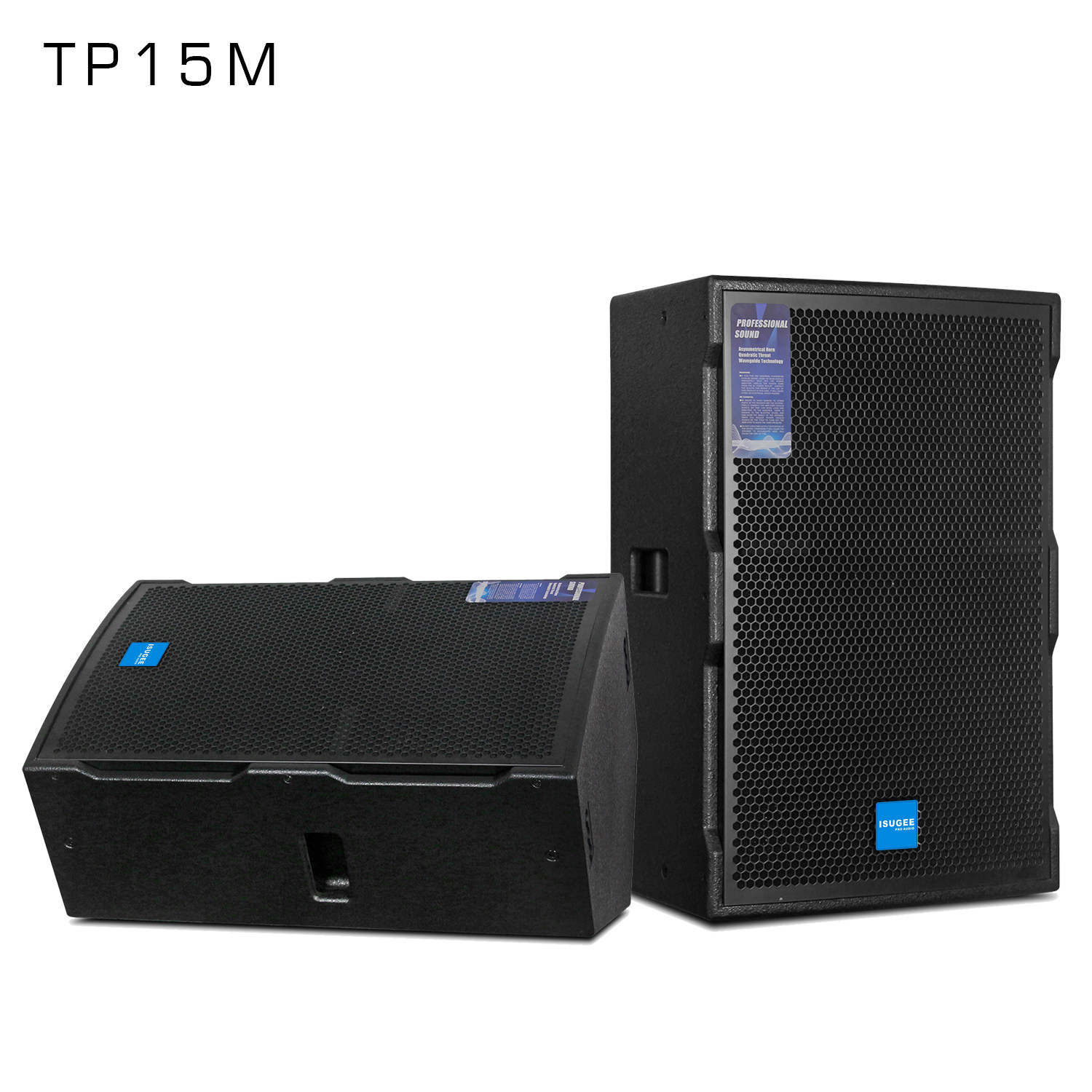

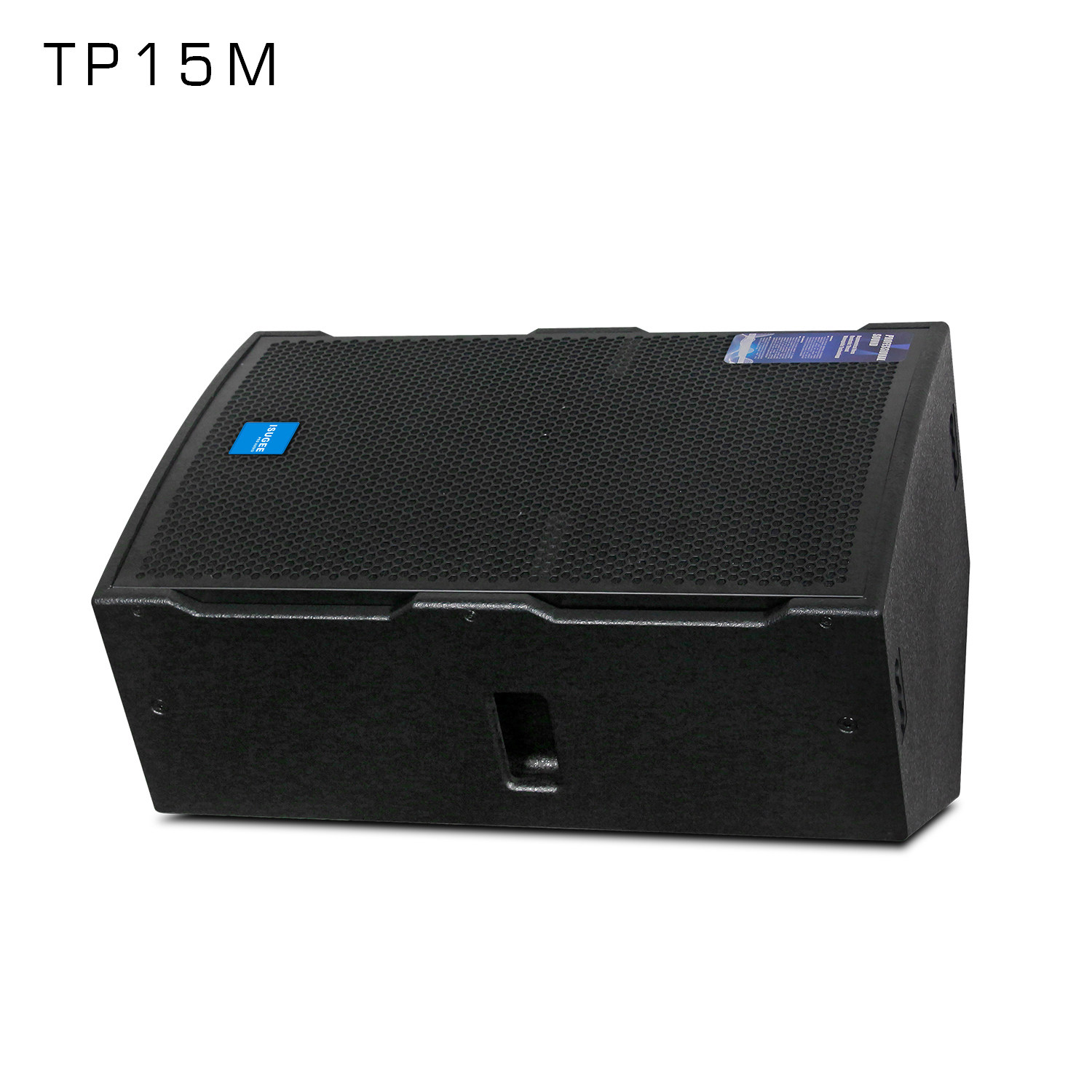

| 型号Model | TP15M |
| 频率响应Frequencyresponse | 60Hz-18kHz(±5dB) |
| 单元配置Components | LF1×15"(170磁75芯)，HF1×1.75"(120磁44芯)1寸出口 LF1×15"(75mmVoicecoil)；HF1×1.75"(44mmVoicecoil)，1”Export |
| 功率Power | 400W(额定)，600W(节目);400W(RMS),600W(Program) |
| 灵敏度(1W/1m)Sensitivity | 95dB |
| 最大声压级(SPL)MaximunSPL | 120dB |
| 标称阻抗Nominalimpedance | 8Ω |
| 标称覆盖角Dispersion | 90°H×60°V |
| 连接方式Connection | 2xNL4Speakon |
| 吊挂硬件SuspensionHardware | M8吊点×6；支架固定座×1；4飞行条； M8Suspensionpoint×6pc;Base×1pc；Mountingplate×4pc |
| 箱体工艺EnclosureMaterial | 15mm中纤板，黑色水性漆 15mmMDF，Environmental Protection wear-resistant black water-based paint |
| 尺寸Dimension（W×H×D） | 436×675×460mm |
| 应用场所Suitablefor | 酒店宴会厅、多功能厅、会议室、户外演出 Hotel/Multifunctionalhall/Conferenceroom/Outdoorperformance |
