Model

Frequency response

Components

Power

Sensitivity(1W/1m)

Maximun SPL

Nominal impedance

Dispersion

Connection

Suspension Hardware

Enclosure Material

Dimension（W*H*D）

Suitable for

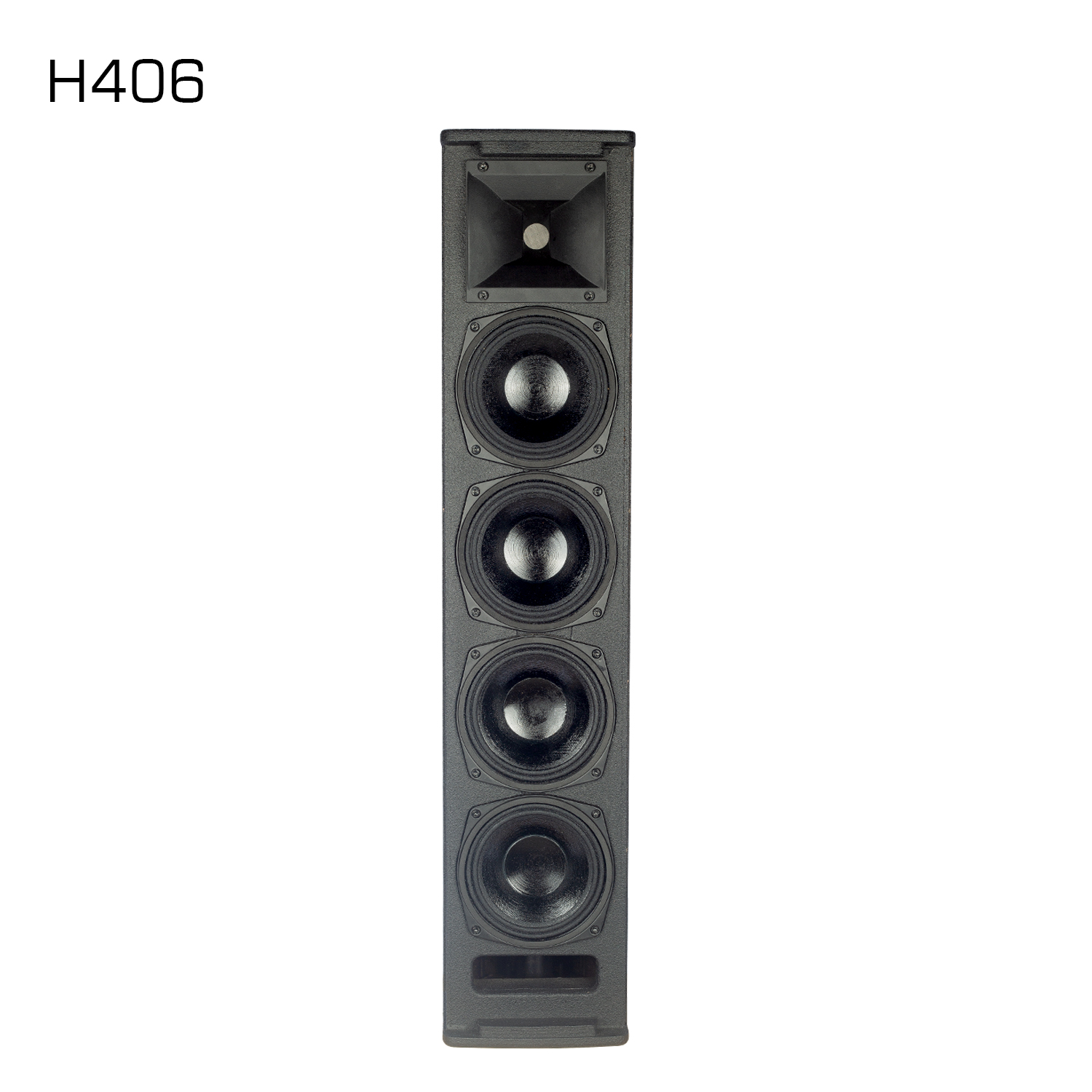

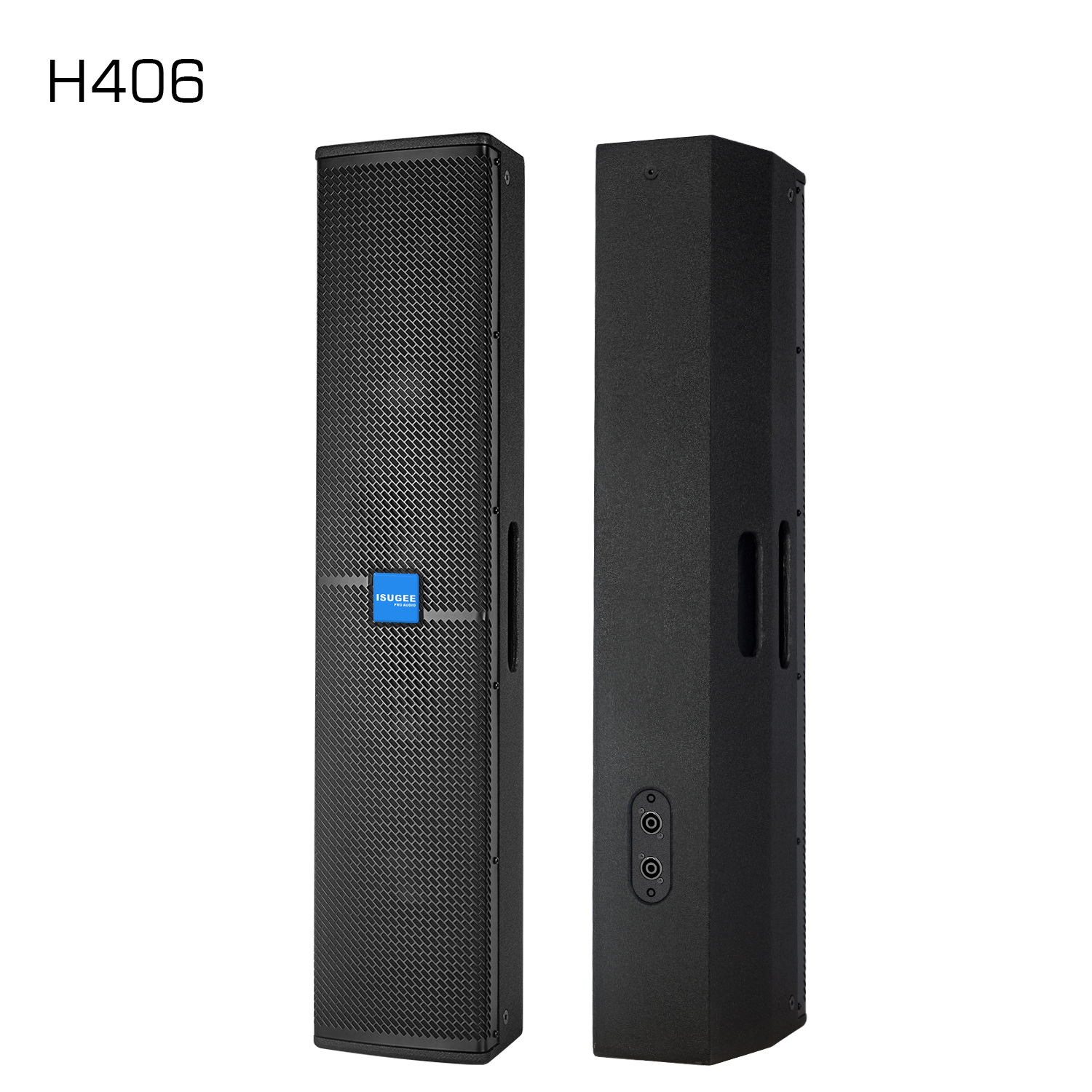

H406

70Hz-18kHz(±5dB)

LF 4x6.5"(50mm Voice coil); HF 1x1.75"(44mm Voice coil neodymium unit))，1” Export

600W (RMS)/1200W(Program)

96dB

129dB

4Ω

90°H × 60°V

2xNL4 Speakon

M8 Suspension pointx16pc; Basex1pc;

15mm plywood, Black Polyurea Painting

193*923*212mm

Hotel/Multifunctional hall/Conference room/Performance

Model

Frequency response

Components

Power

Sensitivity(1W/1m)

Maximun SPL

Nominal impedance

Connection

Suspension Hardware

Enclosure Material

Dimension（W*H*D）

Suitable for

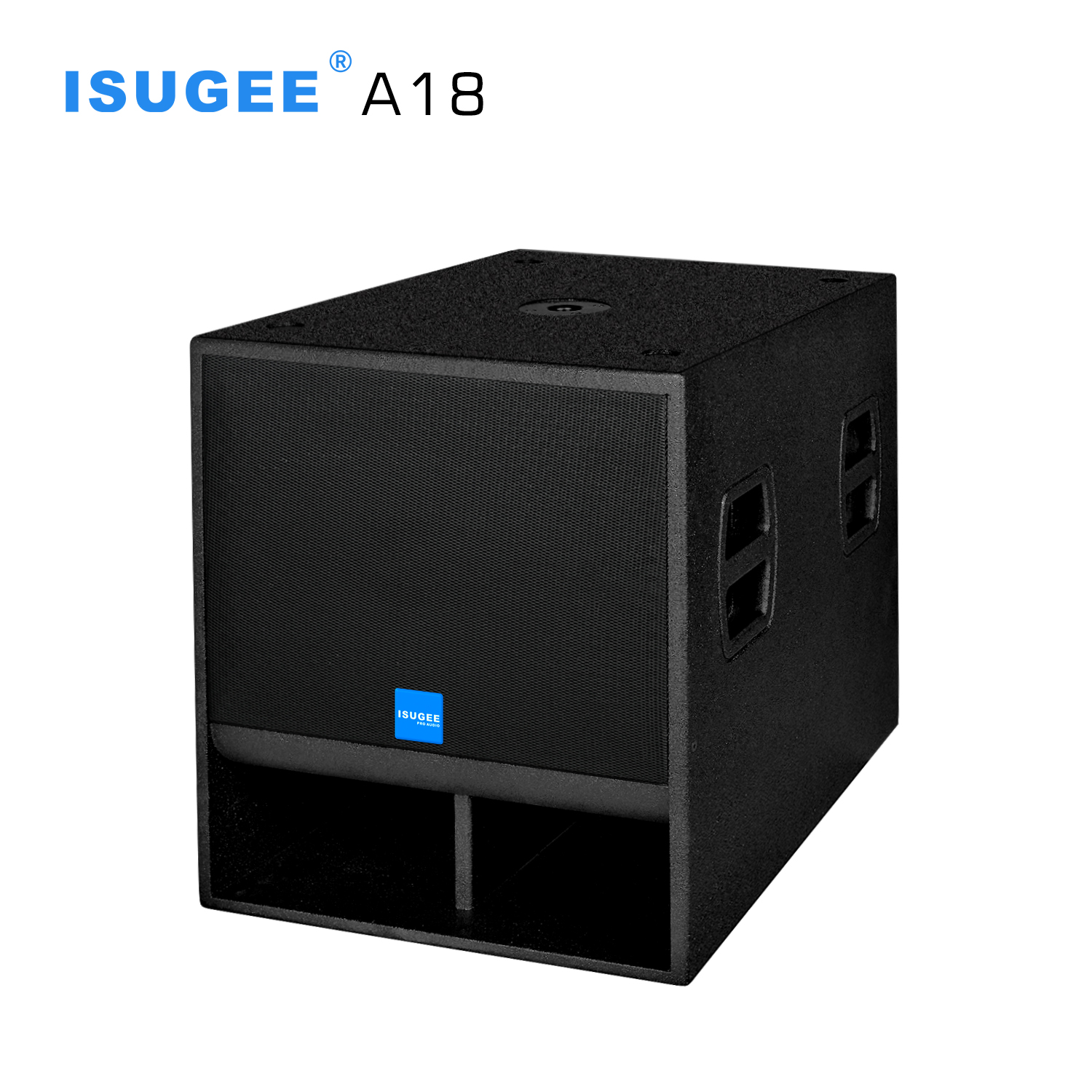

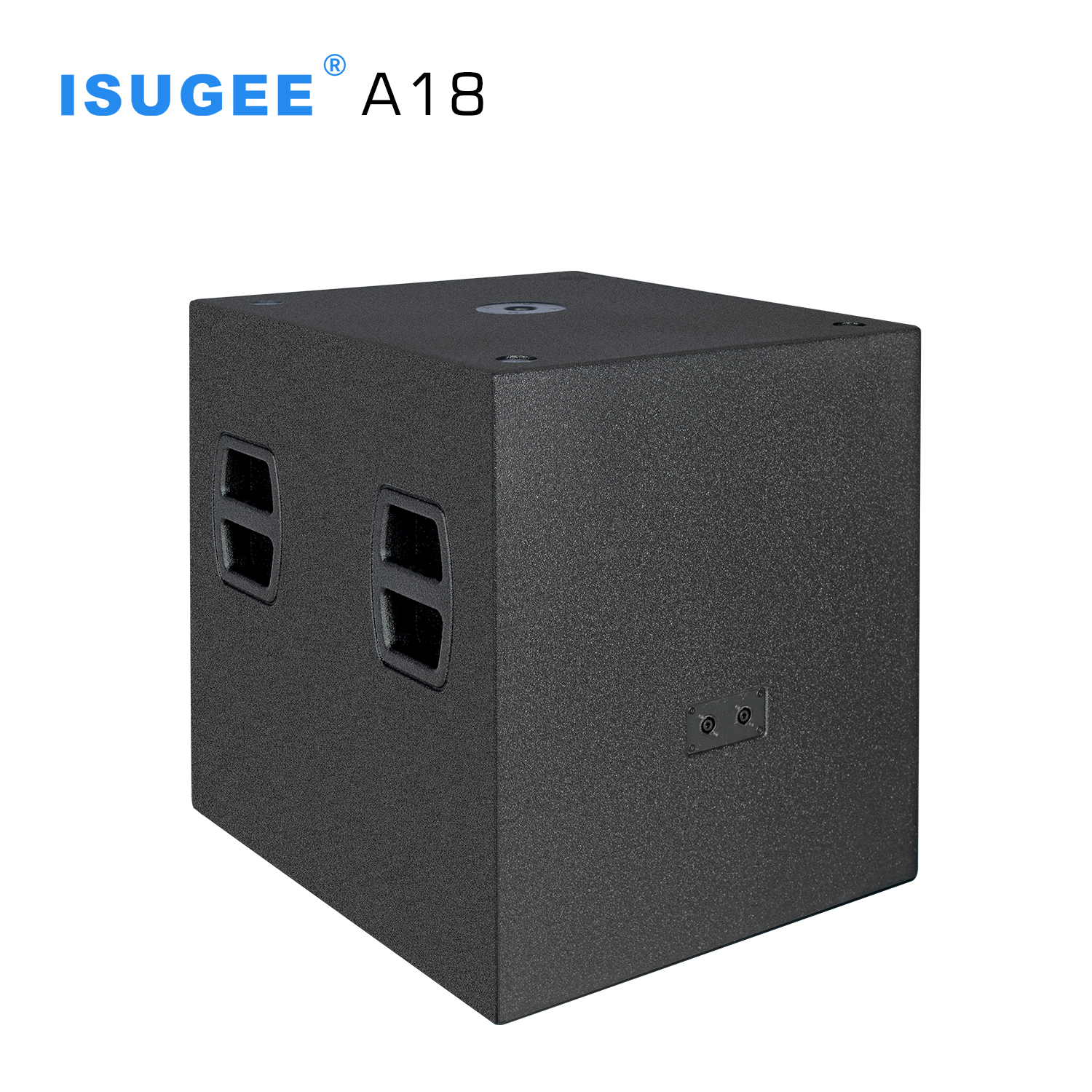

A18

35Hz-200Hz(±5dB)

1×18" (100mm Voice coil neodymium unit)

1000W(RMS), 2000W(Program)

96dB

138dB

8Ω

2xNL4 Speakon

Base*1pc

18mmBirch Plywood  case，Black Polyurea Painting

558*691*700mm

Hotel/Multifunctional hall / KTV / Club and Bar / Performance
