Model

Frequency response

Components

Power

Sensitivity(1W/1m)

Maximun SPL

Nominal impedance

Dispersion

Connection

Suspension Hardware

Enclosure Material

Dimension（W*H*D）

Suitable for

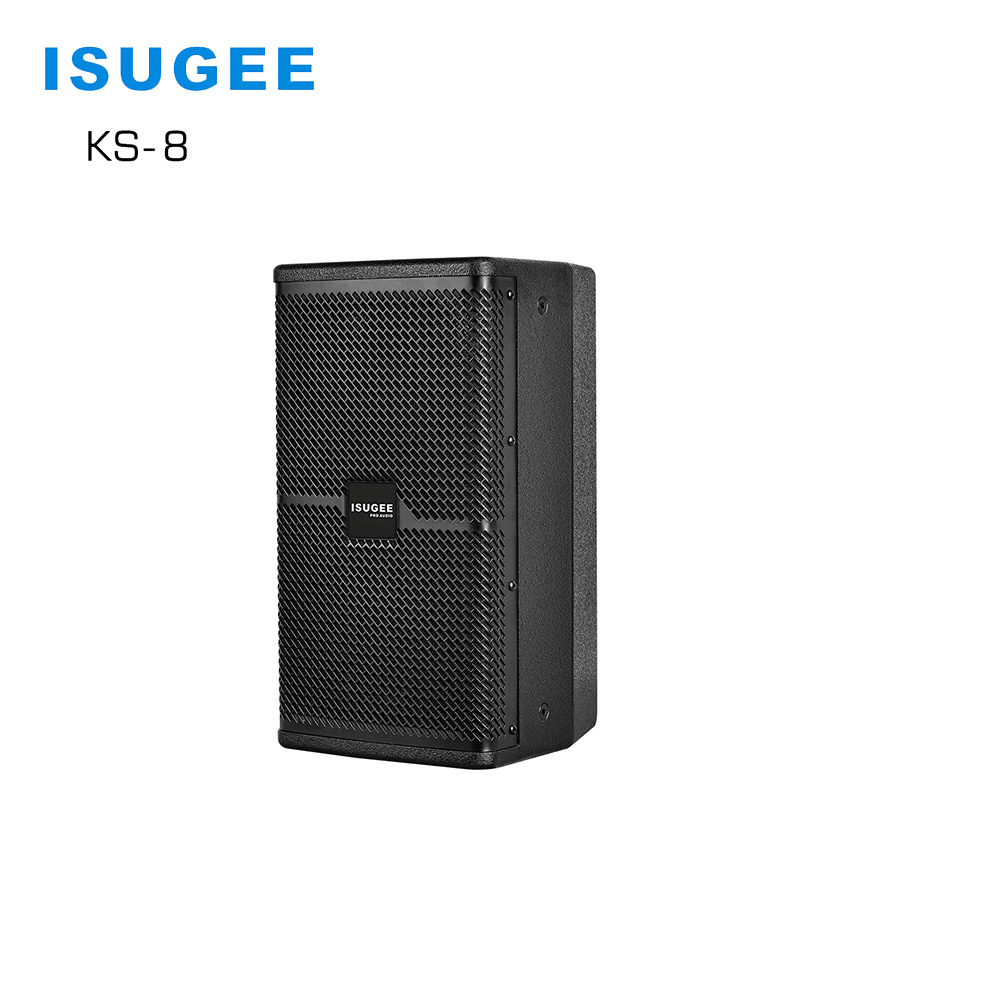

KS8

65Hz-18kHz(±5dB)

LF 1x8"(50mm Voice coil); HF 1x1.25"(36mm Voice coil)，1” Export

150W (RMS)/300W(Program)

94dB

118dB

8Ω

90°H × 60°V

2xNL4 Speakon

M8 Suspension pointx10pc; Basex1pc;

15mm plywood, Black Polyurea Painting

235*435*258mm

Hotel/Multifunctional hall/Conference room/Performance

Model

Frequency response

Components

Power

Built in Amplifier

Sensitivity(1W/1m)

Maximun SPL

Nominal impedance

Power input

Suspension Hardware

Enclosure Material

Dimension（W*H*D）

Suitable for

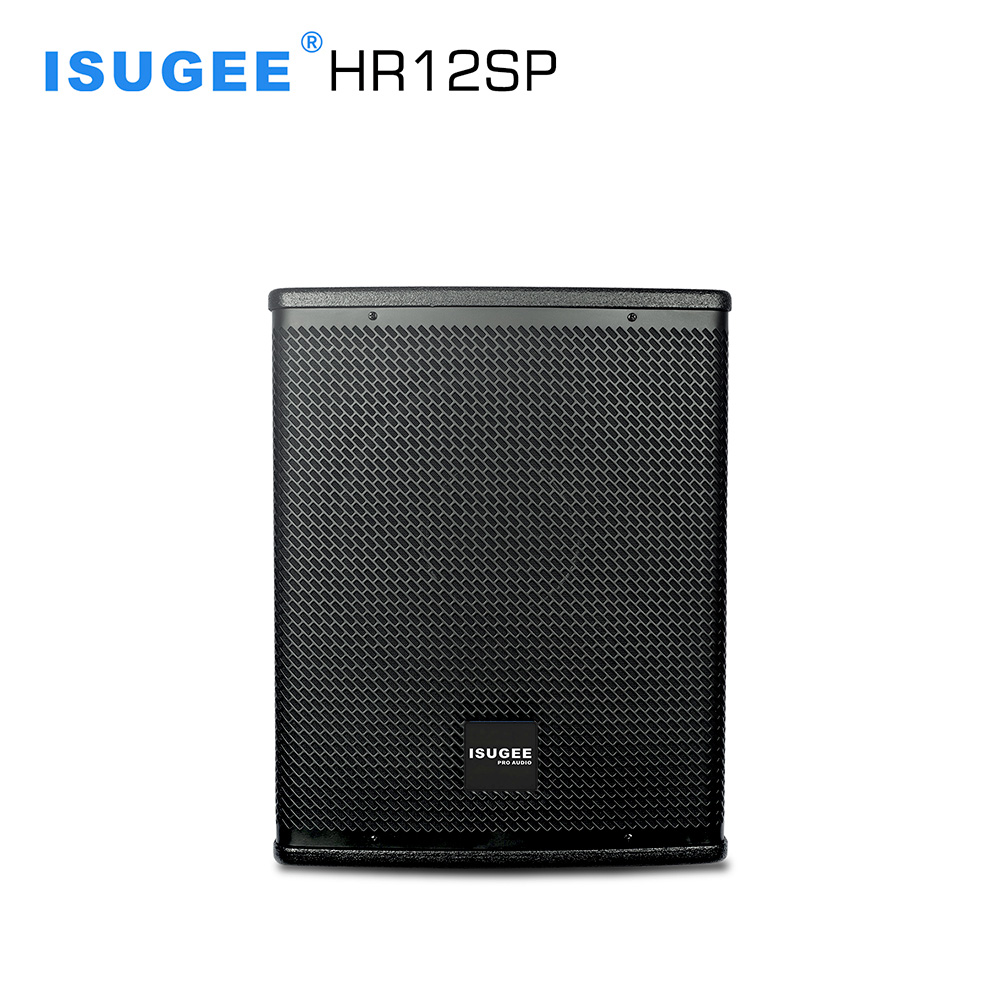

HR12SP

40Hz-500Hz(±5dB)

LF:1×12" (75mm Voice coil)

500W(RMS), 1000W(Program)

8Ω,1000W

95dB

128dB

8Ω

AC 220V 50Hz

one base support

15mm Plywood ，Black Polyurea Painting

370*462*470mm

Hotel/Multifunctional hall / Conference room / Performance
