Model

Frequency response

Components

Power

Sensitivity(1W/1m)

Maximun (SPL)

Nominal impedance

Dispersion

Connection

Suspension Hardware

Enclosure Material

Dimension(W*H*D)

Suitable for

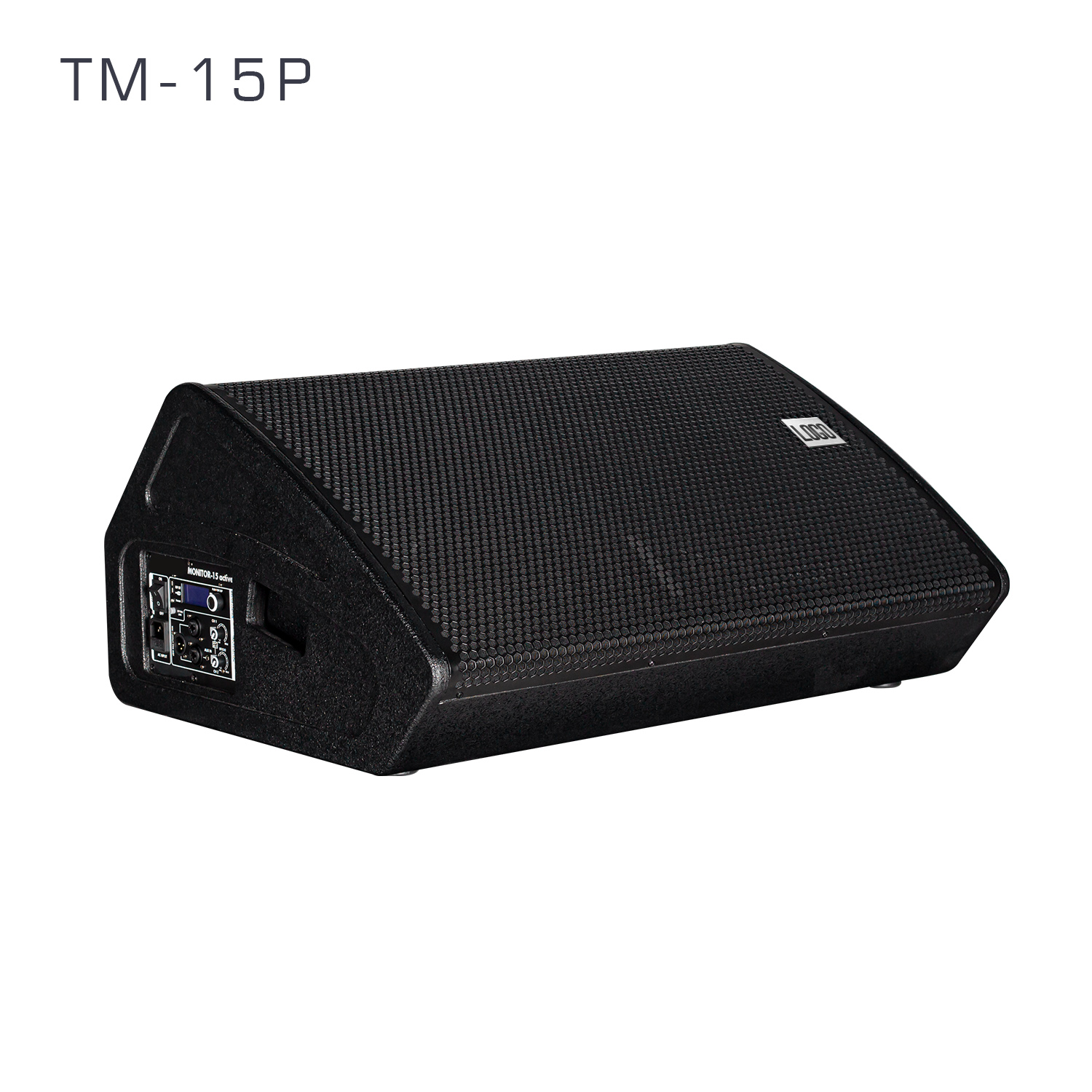

TM15P

50Hz-20KHz(±5dB)

LF: 1*15"(86mm Voice coil unit);HF: 1*2"(51mmVoice coil unit)

580W(RMS)/1160(Program)

97dB

132B

8Ω

90°H*60°V

2*NL4 SProgramon

one base support

15mm plywood, Environmental Protection wear-resistant coffee/ black water-based painting

719*330*556.1

Outdoor performance/ Hotel /Conference Multifunctional room/ Bar
